Product Overview

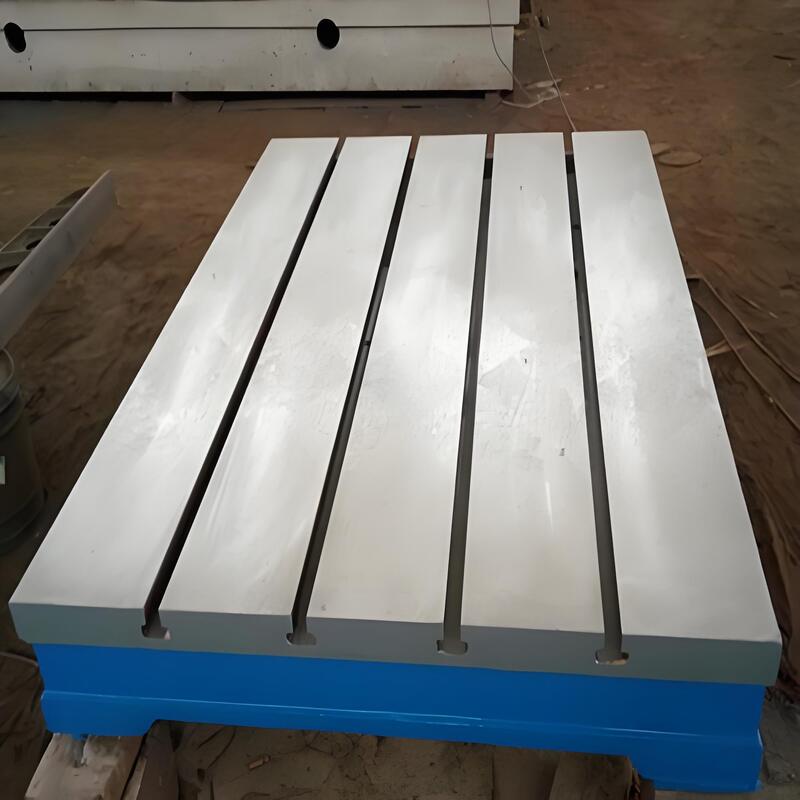

Our OEM HT250
Cast Iron Welding Table is a heavy-duty, high-precision industrial fixture plate designed for professional welding, assembly, inspection, and tooling setup applications. Crafted from premium HT250 gray cast iron with ultra-precision surface grinding, this T-slot fixture plate delivers exceptional dimensional stability, vibration damping performance, and long-term wear resistance.
Fully customizable in size, T-slot specification, and processing requirements, it serves as a universal foundational tool for metal fabrication workshops, automated welding lines, mechanical processing plants, and mold debugging scenarios. Each table undergoes complete stress relief treatment and precision calibration to ensure zero deformation under long-term heavy-load operation.
Core Product Advantages
Premium HT250 Cast Iron Material Performance
Utilizing national standard HT250 gray cast iron with dense pearlite matrix and unique graphite flake structure, this table offers superior industrial adaptability. Features include bending strength above 250MPa, surface hardness of HB170-HB240, excellent compression and impact resistance, and natural graphite self-lubrication that reduces surface friction and extends service life beyond 10 years.
Precision Ground & Stable Dimensional Accuracy
Multi-stage precision grinding technology ensures flatness tolerance within 0.05mm/1000mm, meeting high-precision welding and fixture positioning standards. T-slots are precisely milled with uniform spacing, smooth inner walls, and no burrs for tight fitting with standard clamping fixtures and accessories.
Complete Stress Relief & Anti-Deformation Structure
Dual stress relief treatments including high-temperature annealing and 3-6 months natural aging eliminate internal casting and processing stress. Integral casting with thickened base and reinforced rib structure resists deformation from welding high temperatures, mechanical impact, and long-term static loads.
Universal T-Slot Design & Strong Compatibility
Standard T-slot layout (customizable slot pitch and size) compatible with mainstream welding clamps, positioning pins, pressure plates, bolts, and modular fixture systems. Open T-slot structure supports multi-directional workpiece fixing and flexible positioning for complex welding operations.
Industrial Durability & Easy Maintenance
Cast iron surface provides excellent high-temperature resistance, rust resistance, and scratch resistance. Matte precision grinding surface minimizes welding slag and dust accumulation. Standard load capacity of 2,000kg with heavy-duty custom options available.
Detailed Technical Parameters
| Item |
Technical Specification |
| Material |
National Standard HT250 Gray Cast Iron |
| Surface Hardness |
HB170 - HB240 |
| Flatness Tolerance |
0.05mm/1000mm (Precision Grade) |
| Processing Technology |
Integral Casting + High-temperature Annealing + Natural Aging + Precision Surface Grinding |
| Standard T-Slot Spec |
16mm/28mm (Custom Slot Pitch 50mm/100mm Optional) |
| Standard Load Capacity |
2000KG (Custom Heavy-duty Load Available) |
| Surface Treatment |
Precision Grinding, Rust-proof Passivation |
| Deformation Resistance |
Zero Deformation After Long-term Heavy-load Operation |
| Service Life |
More Than 10 Years of Industrial Service Life |
| Customization Service |
Size, T-slot, Drilling, Tapping, Logo, Non-standard Structure OEM |
Product Detailed Features
- Integral Casting Molding: One-piece casting without splicing, uniform internal structure, no sand holes, trachoma or porosity
- Multi-stage Precision Processing: Rough grinding, fine grinding, and precise calibration three-step processing
- Optimized Rib Structure: Reinforced support ribs disperse bearing pressure and improve stability
- Standardized T-slot Processing: Industrial standard slot size and spacing for global compatibility
- Safe & Humanized Design: Smoothly chamfered edges and reserved mounting holes for safety and convenience
Application Scenarios
This
HT250 cast iron T-slot welding table is widely applicable to metal welding fabrication, mechanical parts assembly, precision size inspection, mold debugging and testing, automated welding fixture positioning, equipment calibration, and batch workpiece processing. Suitable for automobile manufacturing, hardware processing, engineering machinery, aerospace accessories, ship parts, and custom metal processing industries.
Professional OEM & Customization Service
Full-range OEM/ODM customized services including custom table dimensions, T-slot specifications, drilling, tapping, counterbore processing, brand logo printing, and non-standard special-shaped fixture plates. Our technical team provides structural optimization and one-stop solutions from drawing confirmation to finished product inspection.
Quality Assurance & Service
All products undergo strict quality inspection including raw material testing, hardness testing, flatness precision detection, and stress inspection. Professional export packaging ensures safe transportation. Long-term after-sales technical support and product warranty service with quick response to customer needs.
